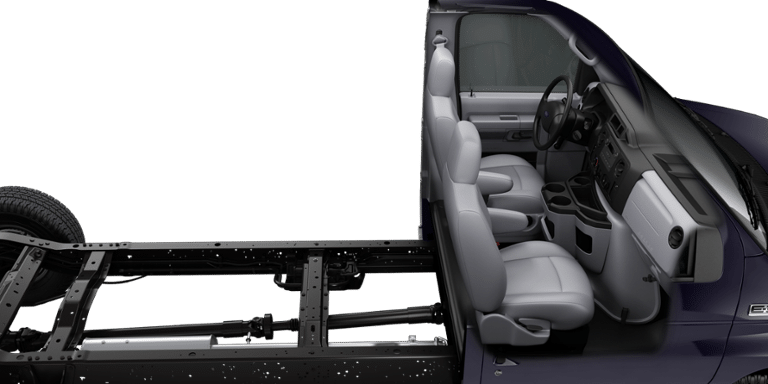

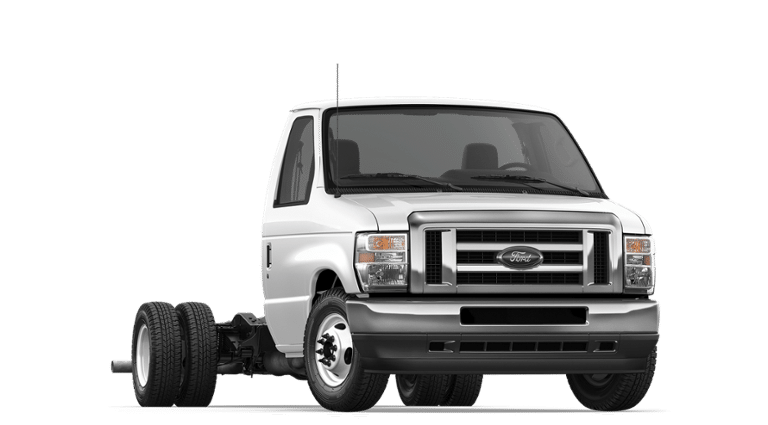

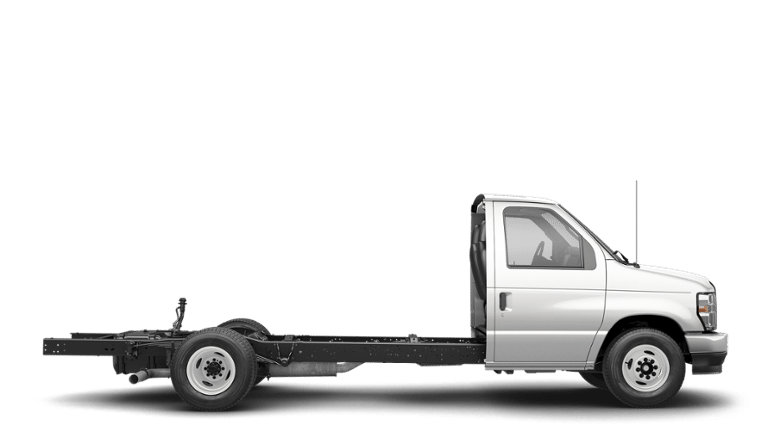

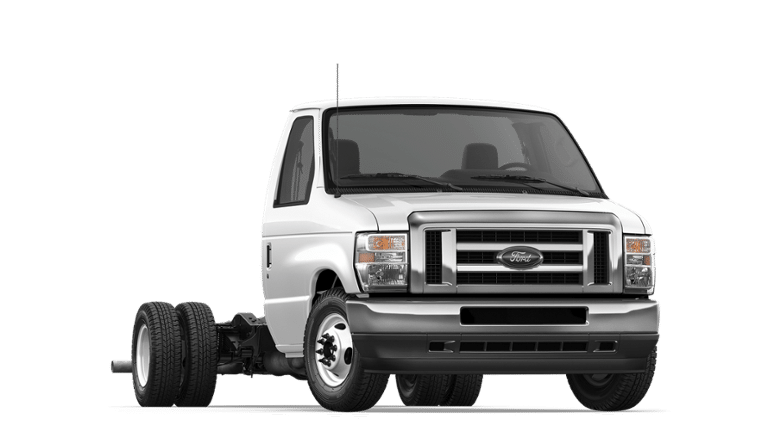

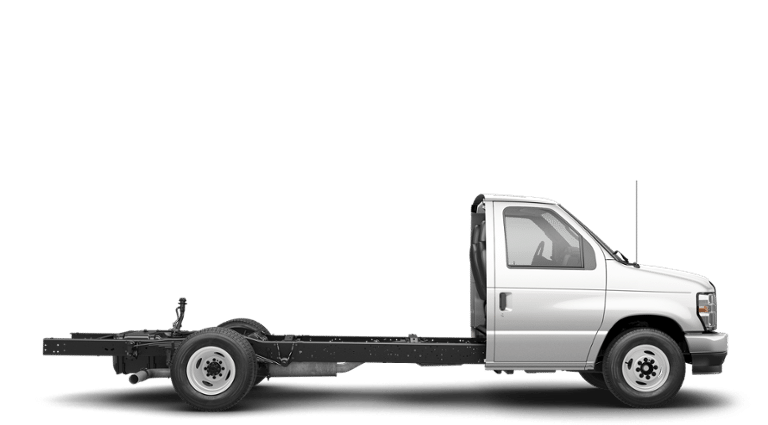

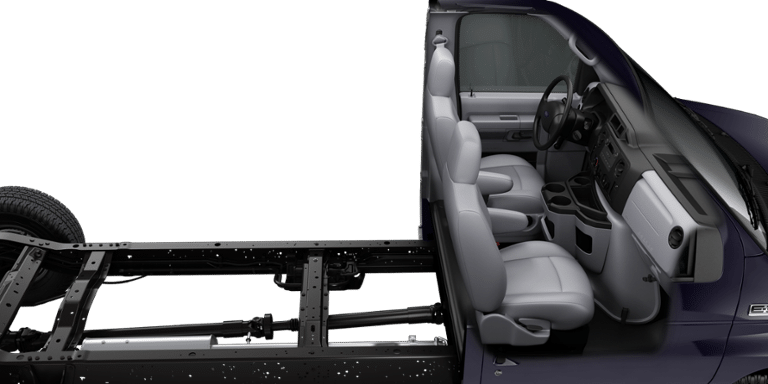

2027 Ford E-450SD Base DRW

• Battery - 78 Amp-Hr
• Hill Start Assist
• Twin I-Beam Independent Front Suspension

• Air Conditioning
• Am/Fm Radio W/ Bluetooth®
• Black Vinyl Floor Covering
• Glove Box W/ 12V Pwr Pt
• Powerpoint - 12V (Front)
• Steering - Tilt/Telescopic
• Tachometer
• Vinyl Front Headliner
• Vinyl Sun Visors

• 3 Point Safety Belts
• 4-Wheel Anti-Lock Disc Braking System
• Driver/Passenger Air Bags
• Electronic Stability Cntrl
• Traction Control

782A

High-Series Exterior Upgrade Package

• License Plate Bracket
• Front Black Vinyl Floor Covering
• High Series Exterior Upgrade Package
• GVWR: 14,500 Lb Payload Package
• Dual High Back Buckets
• Cruise Control
• Manual Telescoping Trailer Tow Mirrors
• Frame Pucks (Isolators)
• Radio: AM/FM Stereo with Clock Display and 2 Speakers
• 16" x 6" White Painted Steel Wheels
• 5000 lbs. Maximum Front GAWR
• Order Code 782A
• 110V Power Inverter
• Power Equipment Group
• SecuriLock Passive Anti-Theft System (EPATS)
• B-Pillar Trim Kit
• Auxiliary Fuel Port
• Remote Keyless Entry
• Embedded Modem Delete
• Vinyl Bucket Seats
• Front Chrome Bumper
• Chrome Grille
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• Dual rear wheels
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Rear anti-roll bar
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• AM/FM radio
• ABS brakes
• Voltmeter
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 5431
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3048
• Curb Weight - Rear (lbs): 2383
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 22000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T68
• Rear Tire Order Code: T68
• Front Tire Size: LT225/75SR16
• Rear Tire Size: LT225/75SR16
• Front Tire Capacity (lbs): 5000
• Rear Tire Capacity (lbs): 9880
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 X 6
• Rear Wheel Size (in): 16 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall (in): 261.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Load Floor (in): 26
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary
• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
